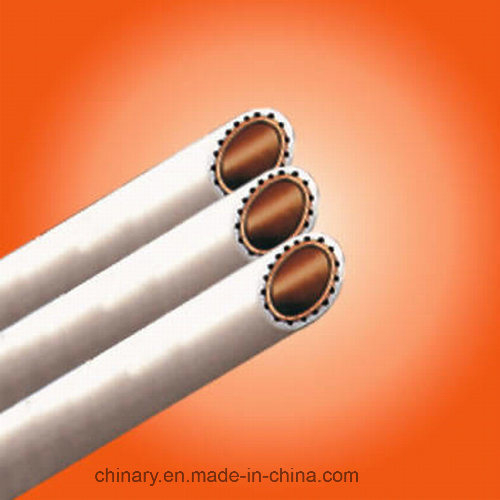

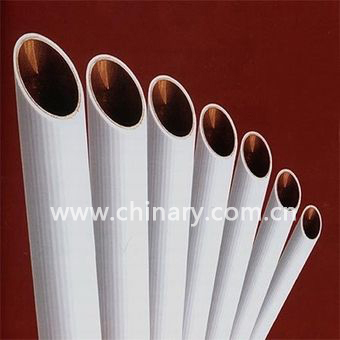

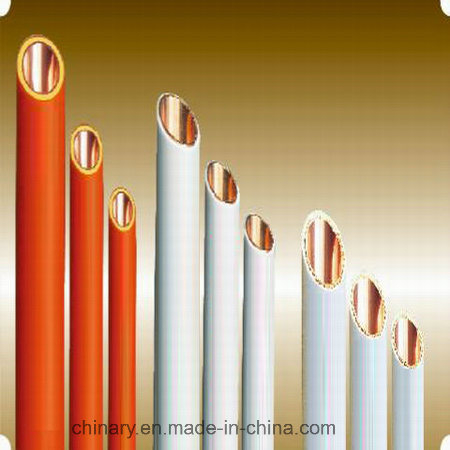

Plastic coated copper tube

Specifications:
☉Standard: ASTM B-280 (GB/T-17791 )
☉Materials: 12200(TP2)
☉Material: PE coating copper
☉Outer diameter: 15 ~ 76mm
☉Thickness: 0.7 ~1.5mm
☉Parallel Loop:17 to 78.8mm
☉ Length: 2.9 ~5.8m

Features:
☉ Healthy, nontoxic, bacteriological neutral and conforms to drinking water standards
☉ Resistant to high temperature (110°C) and nice impact strength
☉ Nice heat insulation property from minimum thermal conductivity
☉ Smooth inner walls reduce pressure loss and increase flow speed
☉ Extremely long lifespan for at least 100 years

Applications:
☉ Cold, hot water supply systems for civil and industrial constructions (in residential buildings, hospitals, hotels, school and office buildings and ship building)
☉ Drinking water systems and food industry pipe works
☉ Suitable for transportation of liquefied petroleum gas
☉ Ideal for subterranean natural gas, coal gas and oxygen

Packing: as the customers requirements

Quantity:
  • Pl-01
Description of Covering MaterialNominal DiameterCopper Tube Specification Plastic Coated Copper Tube Specification
mm InchO.D(mm)W.T(mm)Max O.D(mm) Min W.T(mm)
Polyvinyl Chloride Resin
(PVC)
6 ---61.0 8 1.8
8 ---8 1.0 10 1.8
10 3/812.70.64 16.5 1.6
15 1/215.88 0.71 20.0 1.8
20 3/422.22 0.81 29.0 2.6
25128.58 0.89 36.0 2.8
Polyethylene Plastic
(PE)
10 3/8 12.7 0.64 19.5 2.6
151/215.880.71 24.0 2.8
203/422.220.81 32.5 3.3
Remarks Standard: ASTM B-280 (GB/T-17791 )
 Materials: C12200TP2
 Outer Material: Polyvinyl Chloride Resin(PVCor Polyethylene PlasticPE
The specification as request.
PackingAccording to the customers requirements
