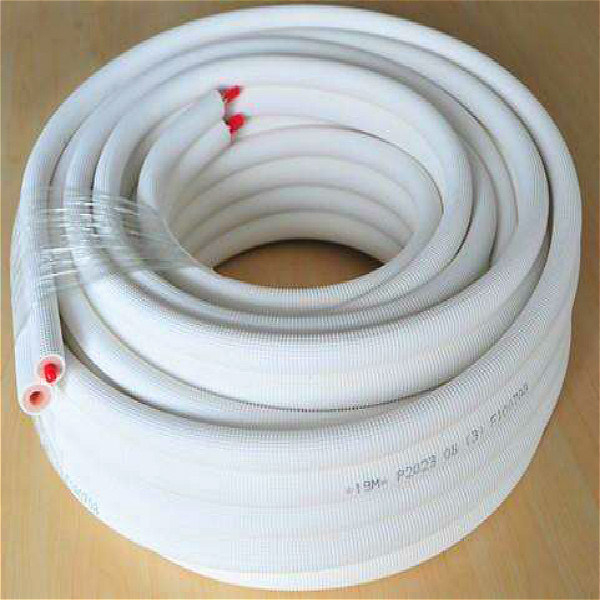

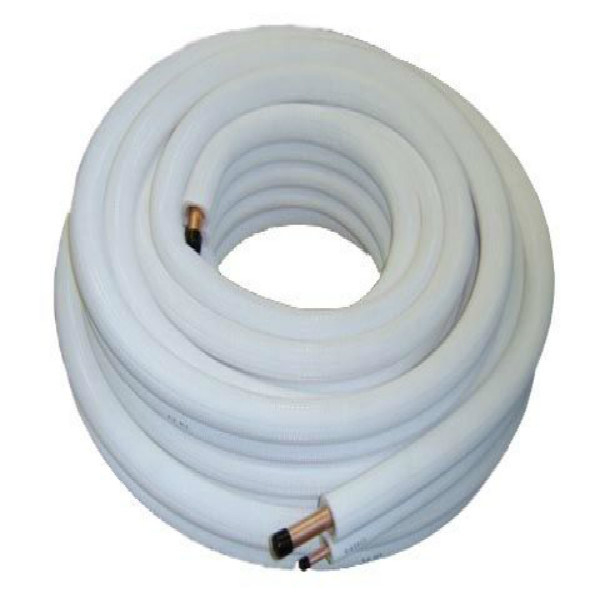

Double Copper Tube

Double Copper Tube(Double Plastic Coated Tube)

Specifications:
☉Standard: ASTM B-280 (GB/T-17791 )
☉Materials: C12200(TP2)
☉ Outer diameter: 22.1 ~ 72.16mm (0.87″ ~ 2.44″)
☉ Thicknessof Insulator: 5 ~13mm (0.2″~ 0.51″)
☉ Length: 9.144 -30.48m (30-100 ft)
☉Temperature of heat resisting: -40°~ 120°

Features:
☉Good elongation
☉Nice electricity and heat conduction
☉Being extruded and processed well
☉ Strong corrosion resistant properties
☉Climate hardiness

Applications:
☉Cold and hot water supply systems for civil and industrial constructions☉ Water tube service and distribution
☉Drinking water systems and food industry pipe works
☉Transportation of liquefied petroleum gas
☉ Natural gas

Packing:
☉ With plastic cap to protect both ends
☉ Standard export packages
☉As the customers requirements

Quantity:
  • DI-01
Type   Size
D2×T2/D1×T1 (inch)
O.D. of the Tube
   D1 D2 D3 (mm)
Thickness of Insulator
T1 T2 T3 T4 (mm)
Length
(ft)
Materials Weight
Pound/feet
-P2320
-P2330
1/4〞×0.032〞——————3/8〞×0.032〞 25.9    22.1    48 8   5   5   8 30ft to 100ft C12200(TP2) 0.233
-P2420
-P2430
1/4〞×0.032〞——————1/2〞×0.032〞 33    22.1    55.1 10   6   5   8 30ft to 100ft C12200(TP2) 0.286
-P2520 1/4〞×0.032〞——————5/8〞×0.039〞 36    22.1    58.166 10   6   5   8 30ft to 100ft C12200(TP2) 0.39
-P3520 3/8〞×0.032〞——————5/8〞×0.039〞 36    25.9    61.98 10   6   5   8 30ft to 100ft C12200(TP2) 0.44
-P3620 3/8〞×0.032〞——————3/4〞×0.032〞 39.1           65 10   6   5   8 30ft to 100ft C12200(TP2) 0.569
-P4620 1/2〞×0.032〞——————3/4〞×0.032〞 39.1    33    72.16  10   6   5  10 30ft to 100ft C12200(TP2) 0.629
Specifications ☉ Standard: ASTM B-280 (GB/T-17791 )
☉ Materials: C12200(TP2)
☉ Outer diameter: 22.1 ~ 72.16mm (0.87″ ~ 2.44″)
☉ Thicknessof Insulator: 5 ~13mm (0.2″~ 0.51″)
☉ Length: 9.144 -30.48m (30-100 ft)
Packing ☉ With plastic cap to protect both ends
☉ Standard export packages
☉As requirements
