| Quantity: | |
|---|---|
ST-01
| Specification | Thickness (mm) | |||||||||||
| 0.4-0.58 | 0.58-0.79 | 0.79-0.99 | 0.99-1.19 | 1.19-1.50 | 1.50-1.98 | 1.98-3.05 | 3.05-4.06 | 4.06-5.59 | 5.59-6.86 | 6.86-9.40 | ||
| O.D. (mm) | 6.35-12.70 | √ | √ | √ | √ | √ | √ | |||||
| 12.70-19.05 | √ | √ | √ | √ | √ | √ | √ | √ | ||||
| 19.05-25.40 | √ | √ | √ | √ | √ | √ | √ | √ | ||||
| 25.40-34.93 | √ | √ | √ | √ | √ | √ | √ | √ | ||||
| 34.93-38.10 | √ | √ | √ | √ | √ | √ | √ | √ | ||||
| 38.10-49.53 | √ | √ | √ | √ | √ | √ | √ | √ | ||||
| 49.53-63.50 | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||
| 63.50-69.85 | √ | √ | √ | √ | √ | √ | √ | √ | ||||
| 69.85-85.73 | √ | √ | √ | √ | √ | √ | √ | √ | ||||
| 85.73-101.60 | √ | √ | √ | √ | √ | √ | √ | |||||
| 101.60-136.53 | √ | √ | √ | √ | ||||||||
| Remarks | ☉Tubes with marks √are supplied ☉Standard：ASTM B280(GB/T17791-2007), ASTM B88 ☉Materials:C11000(T2), C12200(TP2) ☉Outer diameter: 6.35 to 219mm ☉Thickness: 0.4 to 9.4mm ☉Length: 1 to 10m ☉If you will have any special requirements about specifications, please contact us so as to meet the demands | |||||||||||

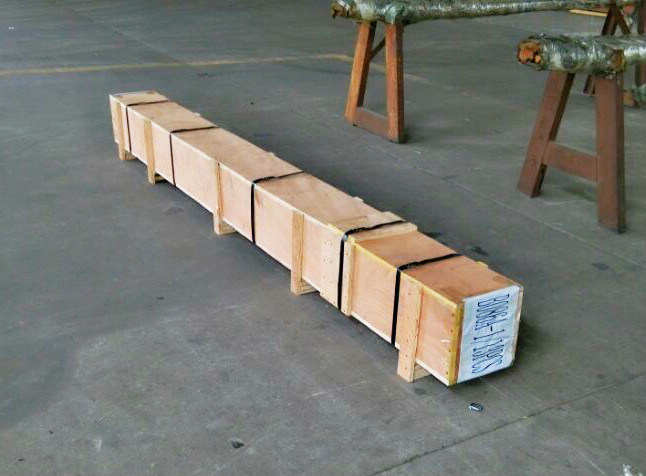

| Packing | in capped each tube trapped and in fumigated wooden cases, or as the customer's requests | |||||||||||
| Specification | Thickness (mm) | |||||||||||
| 0.4-0.58 | 0.58-0.79 | 0.79-0.99 | 0.99-1.19 | 1.19-1.50 | 1.50-1.98 | 1.98-3.05 | 3.05-4.06 | 4.06-5.59 | 5.59-6.86 | 6.86-9.40 | ||
| O.D. (mm) | 6.35-12.70 | √ | √ | √ | √ | √ | √ | |||||
| 12.70-19.05 | √ | √ | √ | √ | √ | √ | √ | √ | ||||
| 19.05-25.40 | √ | √ | √ | √ | √ | √ | √ | √ | ||||
| 25.40-34.93 | √ | √ | √ | √ | √ | √ | √ | √ | ||||
| 34.93-38.10 | √ | √ | √ | √ | √ | √ | √ | √ | ||||
| 38.10-49.53 | √ | √ | √ | √ | √ | √ | √ | √ | ||||
| 49.53-63.50 | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||
| 63.50-69.85 | √ | √ | √ | √ | √ | √ | √ | √ | ||||
| 69.85-85.73 | √ | √ | √ | √ | √ | √ | √ | √ | ||||
| 85.73-101.60 | √ | √ | √ | √ | √ | √ | √ | |||||
| 101.60-136.53 | √ | √ | √ | √ | ||||||||
| Remarks | ☉Tubes with marks √are supplied ☉Standard：ASTM B280(GB/T17791-2007), ASTM B88 ☉Materials:C11000(T2), C12200(TP2) ☉Outer diameter: 6.35 to 219mm ☉Thickness: 0.4 to 9.4mm ☉Length: 1 to 10m ☉If you will have any special requirements about specifications, please contact us so as to meet the demands | |||||||||||
| Packing | in capped each tube trapped and in fumigated wooden cases, or as the customer's requests | |||||||||||
