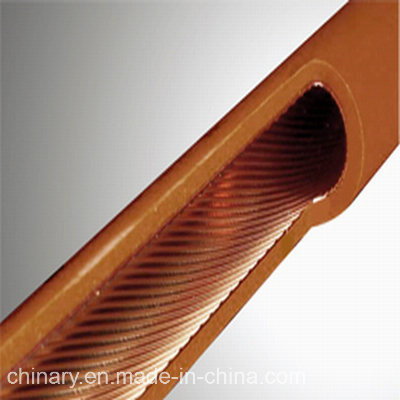

| Quantity: | |
|---|---|
| Item | O.D. (mm) | I.D. (mm) | Bottom Wall Thickness Tw (mm) | Fin Grove Depth Hf (mm) | Total Wall Thickness (mm) | Apex Angle α ( ° ) | Helix Angle β (°) | Number of Tooth |
| 1 |  5.00 | 4.30 | 0.2 | 0.15 | 0.35 | 40 | 18 | 40 |
| 2 | 7.00 | 6.34 | 0.23 | 0.1 | 0.33 | 40 | 15 | 65 |
| 3 | 7.00 | 6.16 | 0.24 | 0.18 | 0.42 | 35 | 18 | 50 |
| 4 | 7.00 | 6.14 | 0.25 | 0.18 | 0.43 | 40 | 18 | 50 |
| 5 | 7.00 | 6.06 | 0.25 | 0.22 | 0.47 | 22 | 16 | 54 |
| 6 | 7.94 | 7.08 | 0.25 | 0.18 | 0.43 | 40 | 18 | 50 |
| 7 | 7.94 | 7.04 | 0.25 | 0.2 | 0.45 | 40 | 18 | 50 |
| 8 | 7.94 | 6.94 | 0.3 | 0.2 | 0.5 | 35 | 18 | 50 |
| 9 | 9.52 | 8.72 | 0.28 | 0.12 | 0.4 | 53 | 15 | 65 |
| 10 | 9.52 | 8.66 | 0.28 | 0.15 | 0.43 | 90 | 25 | 65 |
| 11 | 9.52 | 8.58 | 0.3 | 0.17 | 0.47 | 25 | 18 | 70 |
| 12 | 12.00 | 10.78 | 0.36 | 0.25 | 0.61 | 40 | 18 | 70 |
| 13 | 12.70 | 11.50 | 0.35 | 0.25 | 0.6 | 53 | 18 | 70 |
| 14 | 12.70 | 11.40 | 0.4 | 0.25 | 0.65 | 53 | 18 | 70 |
| 15 | 12.70 | 11.20 | 0.5 | 0.25 | 0.75 | 53 | 18 | 75 |
| 16 | 12.75 | 11.53 | 0.36 | 0.25 | 0.61 | 48 | 20 | 70 |
| 17 | 14.00 | 12.82 | 0.37 | 0.22 | 0.59 | 52 | 16 | 75 |
| 18 | 14.00 | 12.70 | 0.4 | 0.25 | 0.65 | 40 | 18 | 70 |
| 19 | 15.00 | 13.70 | 0.4 | 0.25 | 0.65 | 42 | 18 | 75 |
| 20 | 15.87 | 14.37 | 0.4 | 0.3 | 0.7 | 25 | 15 | 68 |
| 21 | 15.87 | 14.11 | 0.58 | 0.3 | 0.88 | 42 | 18 | 75 |
| 22 | 15.92 | 14.63 | 0.4 | 0.25 | 0.65 | 25 | 18 | 75 |
| 23 | 15.88 | 14.28 | 0.5 | 0.3 | 0.8 | 70 | 27 | 75 |
| 24 | 16.00 | 14.70 | 0.4 | 0.25 | 0.65 | 10 | 1 | 110 |
| 25 | 16.00 | 14.30 | 0.65 | 0.2 | 0.85 | 10 | 1 | 140 |
| Specifications | ☉Standard: ASTM B-68 (GB/T 20928 ) ☉Materials: C11000 (T2), C12200 (TP2), C2680 (H68), C27200 (H63) and C27000 (H65) ☉Temper: soft drawn or light soft drawn ☉O.D. (Outside diameter): 5.0 to 16.0mm ☉I.D. (Inner diameter): 4.3 to 14.3mm ☉Bottom wall thickness: 0.20 to 0.65mm ☉Total wall thickness: 0.35 to 0.85mm ☉Fin groove depth: 0.15 to 0.25mm ☉Customized sizes and shapes are accepted | |||||||
| Packing | ☉in capped each tube trapped and in fumigated wooden cases, or as the customer's requests ☉Great care is taken to avoid any damage which might be caused during storage or transportation | |||||||
| Item | O.D. (mm) | I.D. (mm) | Bottom Wall Thickness Tw (mm) | Fin Grove Depth Hf (mm) | Total Wall Thickness (mm) | Apex Angle α ( ° ) | Helix Angle β (°) | Number of Tooth |
| 1 | 5.00 | 4.30 | 0.2 | 0.15 | 0.35 | 40 | 18 | 40 |
| 2 | 7.00 | 6.34 | 0.23 | 0.1 | 0.33 | 40 | 15 | 65 |
| 3 | 7.00 | 6.16 | 0.24 | 0.18 | 0.42 | 35 | 18 | 50 |
| 4 | 7.00 | 6.14 | 0.25 | 0.18 | 0.43 | 40 | 18 | 50 |
| 5 | 7.00 | 6.06 | 0.25 | 0.22 | 0.47 | 22 | 16 | 54 |
| 6 | 7.94 | 7.08 | 0.25 | 0.18 | 0.43 | 40 | 18 | 50 |
| 7 | 7.94 | 7.04 | 0.25 | 0.2 | 0.45 | 40 | 18 | 50 |
| 8 | 7.94 | 6.94 | 0.3 | 0.2 | 0.5 | 35 | 18 | 50 |
| 9 | 9.52 | 8.72 | 0.28 | 0.12 | 0.4 | 53 | 15 | 65 |
| 10 | 9.52 | 8.66 | 0.28 | 0.15 | 0.43 | 90 | 25 | 65 |
| 11 | 9.52 | 8.58 | 0.3 | 0.17 | 0.47 | 25 | 18 | 70 |
| 12 | 12.00 | 10.78 | 0.36 | 0.25 | 0.61 | 40 | 18 | 70 |
| 13 | 12.70 | 11.50 | 0.35 | 0.25 | 0.6 | 53 | 18 | 70 |
| 14 | 12.70 | 11.40 | 0.4 | 0.25 | 0.65 | 53 | 18 | 70 |
| 15 | 12.70 | 11.20 | 0.5 | 0.25 | 0.75 | 53 | 18 | 75 |
| 16 | 12.75 | 11.53 | 0.36 | 0.25 | 0.61 | 48 | 20 | 70 |
| 17 | 14.00 | 12.82 | 0.37 | 0.22 | 0.59 | 52 | 16 | 75 |
| 18 | 14.00 | 12.70 | 0.4 | 0.25 | 0.65 | 40 | 18 | 70 |
| 19 | 15.00 | 13.70 | 0.4 | 0.25 | 0.65 | 42 | 18 | 75 |
| 20 | 15.87 | 14.37 | 0.4 | 0.3 | 0.7 | 25 | 15 | 68 |
| 21 | 15.87 | 14.11 | 0.58 | 0.3 | 0.88 | 42 | 18 | 75 |
| 22 | 15.92 | 14.63 | 0.4 | 0.25 | 0.65 | 25 | 18 | 75 |
| 23 | 15.88 | 14.28 | 0.5 | 0.3 | 0.8 | 70 | 27 | 75 |
| 24 | 16.00 | 14.70 | 0.4 | 0.25 | 0.65 | 10 | 1 | 110 |
| 25 | 16.00 | 14.30 | 0.65 | 0.2 | 0.85 | 10 | 1 | 140 |
| Specifications | ☉Standard: ASTM B-68 (GB/T 20928 ) ☉Materials: C11000 (T2), C12200 (TP2), C2680 (H68), C27200 (H63) and C27000 (H65) ☉Temper: soft drawn or light soft drawn ☉O.D. (Outside diameter): 5.0 to 16.0mm ☉I.D. (Inner diameter): 4.3 to 14.3mm ☉Bottom wall thickness: 0.20 to 0.65mm ☉Total wall thickness: 0.35 to 0.85mm ☉Fin groove depth: 0.15 to 0.25mm ☉Customized sizes and shapes are accepted | |||||||
| Packing | ☉in capped each tube trapped and in fumigated wooden cases, or as the customer's requests ☉Great care is taken to avoid any damage which might be caused during storage or transportation | |||||||
