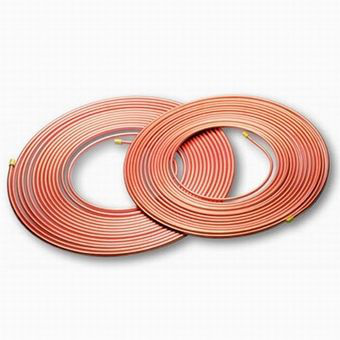

Pancake Coil Tube

SHENZHEN CHINARY CO., LTD. specializes in providing Raw Materials of Metals and Chemicals products for customers all over the world
Availability:
Quantity:
Pancake Coil Tube

Specifications:

☉ Standard: ASTM B-280 (GB/T-17791 )

☉ Materials: C1100(T2), C10200(TU2), 12200(TP2) and other alloy

☉ Outer diameter: 3.18 ~ 28.58mm (1/8″~ 1 1/8″)

☉ Thickness: 0.36 ~ 1.50mm  (0.014″~ 0.059″)

☉ Length: ≤ 30.48m (100 ft)

☉ Process method: cold-drawn and -rolled

☉ Surface: pickled or sand blasting


Features:

☉ Small external diameter

☉ High precision

☉ Smooth internal and external surface

☉ Strong corrosion resistant properties


Applications:

☉ Air conditioner and refrigerator

☉ Water tube service and distribution

☉ water heater, wall-mounted boiler

☉ Fire protection, solar and fuel/fuel oil

☉ Natural gas, liquefied petroleum (LP) gas

☉ Snow melting, drain, waste and vent piping

☉ Heat exchange


Packing:

☉ With plastic cap to protect both ends

☉ Standard export packages

☉Custom suffocating free.


Specification as below:

SpecificationThickness
0.016″0.02″0.024″0.028″0.032″0.04″0.048″0.06″
0.41mm0.5mm0.61mm0.71mm0.81mm1.02mm1.22mm1.5mm
O.D.<0.1575 ″4mm






<0.2 (1/5)″5mm

<0.25 (1/4)″6.35mm

<0.315 ″8mm
<0.375 (3/8)″9.52mm
<0.50 (1/2)″12.7mm
<0.55″14mm



<0.625 (5/8)″15.88mm


<0.75 (3/4)″19.05mm



<0.875 (7/8)″22.22mm





Remarks☉Tubes with marks √are supplied
☉Standard: ASTM B-280 (GB/T-17791 )
☉Materials: C1100(T2), C10200(TU2), 12200(TP2)
☉ Outer diameter: 3.18 ~ 28.58mm (1/8″~ 1 1/8″)
☉ Thickness: 0.36 ~ 1.50mm  (0.014″~ 0.059″)
☉ Length: ≤ 30.48m (100 ft)
☉If you will have any special requirements about specifications, please contact us so as to meet  the demands
Packing☉ With plastic cap to protect both ends
☉ Standard export packages
☉Custom suffocating free
