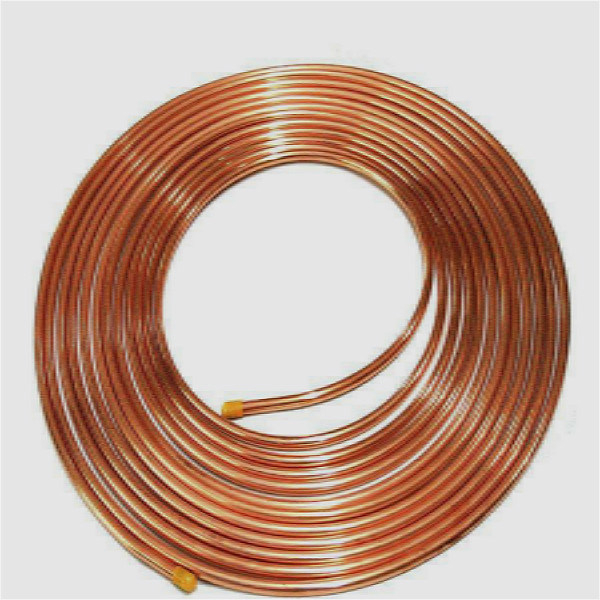

Pancake Coil Tube

Specifications:
☉ Standard: ASTM B-280 (GB/T-17791 )
☉ Materials: C1100(T2), C10200（TU2）, 12200（TP2） and other alloy
☉ Outer diameter: 3.18 ~ 28.58mm (1/8″~ 1 1/8″)
☉ Thickness: 0.36 ~ 1.50mm (0.014″~ 0.059″)
☉ Length: ≤ 30.48m (100 ft)
☉ Process method: cold-drawn and -rolled
☉ Surface: pickled or sand blasting

Features:
☉ Small external diameter
☉ High precision
☉ Smooth internal and external surface
☉ Strong corrosion resistant properties

Applications:
☉ Air conditioner and refrigerator
☉ Water tube service and distribution
☉ water heater, wall-mounted boiler
☉ Fire protection, solar and fuel/fuel oil
☉ Natural gas, liquefied petroleum (LP) gas
☉ Snow melting, drain, waste and vent piping
☉ Heat exchange

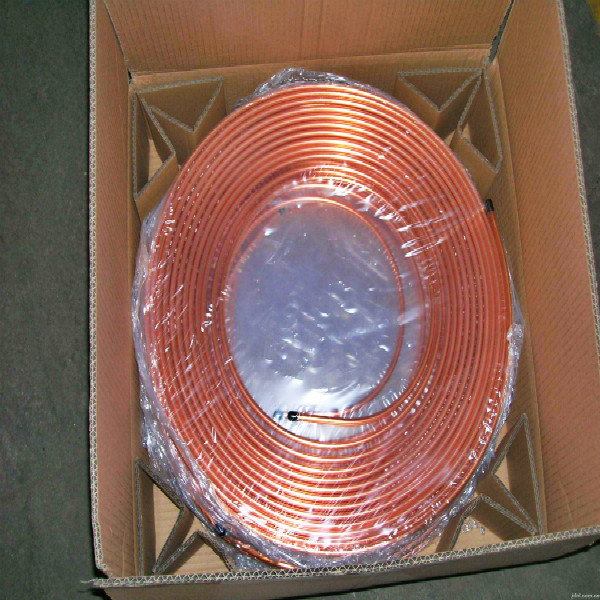

Packing：
☉ With plastic cap to protect both ends
☉ Standard export packages
☉Custom suffocating free.

Availability:

Quantity:



Inquire Add to Basket

Model:
PC-01

Product Description

Specification			Thickness
			0.016″	0.02″	0.024″	0.028″	0.032″	0.04″	0.048″	0.06″
			0.41mm	0.5mm	0.61mm	0.71mm	0.81mm	1.02mm	1.22mm	1.5mm
O.D.	<0.1575 ″	4mm		√
	<0.2 (1/5)″	5mm	√	√	√	√	√	√
	<0.25 (1/4)″	6.35mm	√	√	√	√	√	√
	<0.315 ″	8mm	√	√	√	√	√	√	√	√
	<0.375 (3/8)″	9.52mm	√	√	√	√	√	√	√	√
	<0.50 (1/2)″	12.7mm		√	√	√	√	√	√	√
	<0.55″	14mm			√	√	√	√
	<0.625 (5/8)″	15.88mm			√	√	√	√	√
	<0.75 (3/4)″	19.05mm				√	√	√	√
	<0.875 (7/8)″	22.22mm					√	√
Remarks			☉Tubes with marks √are supplied ☉Standard: ASTM B-280 (GB/T-17791 ) ☉Materials: C1100(T2), C10200（TU2）, 12200（TP2) ☉ Outer diameter: 3.18 ~ 28.58mm (1/8″~ 1 1/8″) ☉ Thickness: 0.36 ~ 1.50mm (0.014″~ 0.059″) ☉ Length: ≤ 30.48m (100 ft) ☉If you will have any special requirements about specifications, please contact us so as to meet the demands
Packing			☉ With plastic cap to protect both ends ☉ Standard export packages ☉Custom suffocating free
