| MIM Powder | ||||||||||
| The product is produced by a combination of water and gas atomization under an uhrahigh pressure. Precise engineering makes particie size of the powder more fine, ctoser to sphere. Product of each batch must be mixed and has a final test. Such meticulous works ensure the stabiiity of powder. | ||||||||||
| Product Characteristics | 1.High Sintering Density. 2.Good Mechanical Properties 3.Smooth Surface, Nearly Spherical Appearance 4.To improve the product!on of ultra-tin and ultra small parts 5.Free combination of particle size | |||||||||
| Chemical Compositions | Material | C | Si | Mn | Ni | Cr | Cu | Nb | Mo | Fe |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | 12.0-15.0 | 16.0-18.0 | - | - | 2.0-3.0 | Bal. | |
| 304L | ≤0.03 | ≤1.00 | ≤2.00 | 9.0-13.0 | 18.0-20.0 | - | - | - | Bal. | |
| 17-4PH | ≤0.07 | ≤0.5 | ≤0.30 | 3.0-5.0 | 15.5-17.5 | 3.0-5.0 | 0.15-0.45 | - | Bal. | |
| 440C | 0.95-1.20 | ≤0.5 | ≤1.00 | ≤0.6 | 16.0-18.0 | - | 0.75 | - | Bal. | |
| 2%NiFe | ≤0.01 | ≤0.35 | ≤0.5 | 1.5-2.5 | ≤0.2 | - | - | - | Bal. | |
| HK-30 | 0.45-0.50 | ≤1.75 | ≤1.5 | 19.0-22.0 | 23.0-27.0 | - | 1.2-1.5 | - | Bal. | |

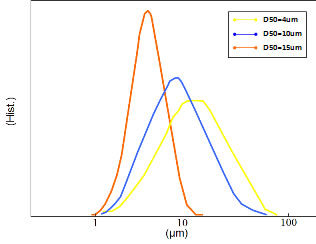

| Several conventional Particles Diameters | MIM Diameters | Particle Size Curve Distribution | ||||||||
| Item | D50(μm) | O(ppm) |
| |||||||
| 4μm | 4.0±1.0 | 4500 | ||||||||
| 6μm | 6.0±1.0 | 3000 | ||||||||
| 10μm | 10.0±1.0 | 2500 | ||||||||
| 12μm | 12.0±1.0 | 2200 | ||||||||
| 15μm | 15.0±1.0 | 2000 | ||||||||

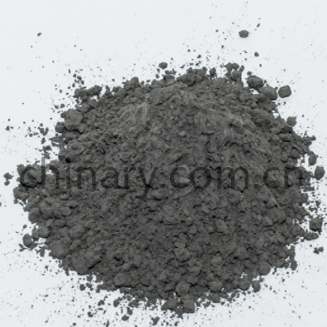

| Appearance Photographs | ||||||||||
| Packing | In 25 kg plastic drums, 1000kg big plastic bags, as request | |||||||||
